AC to 12V DC Linear Actuator Motor Wired / Wireless Remote Controller Driver Lifting Lift Up Down Control Module Set

Product comes with controller set only (AC to DC adapter & controller),

not included Linear Motor / Quick Connector.



Suitable for all standard 12V DC Linear Motor.



Input Voltage: 220V- 240V AC



Output Voltage: 12V DC

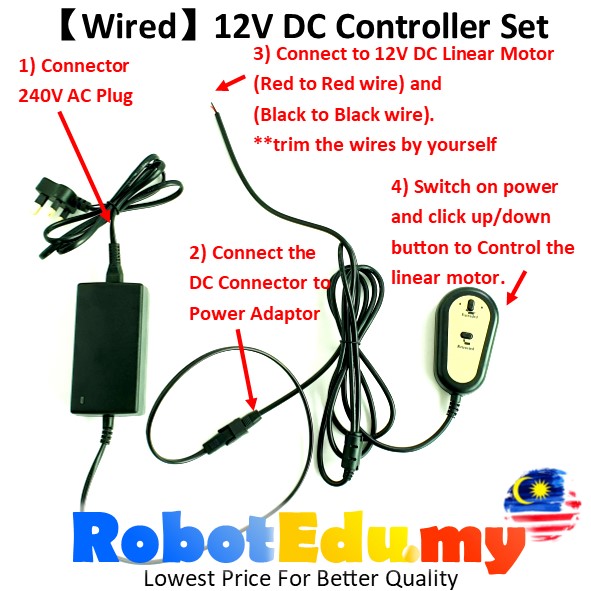

A) Wired Controller Wire Length : 1 Meter +-

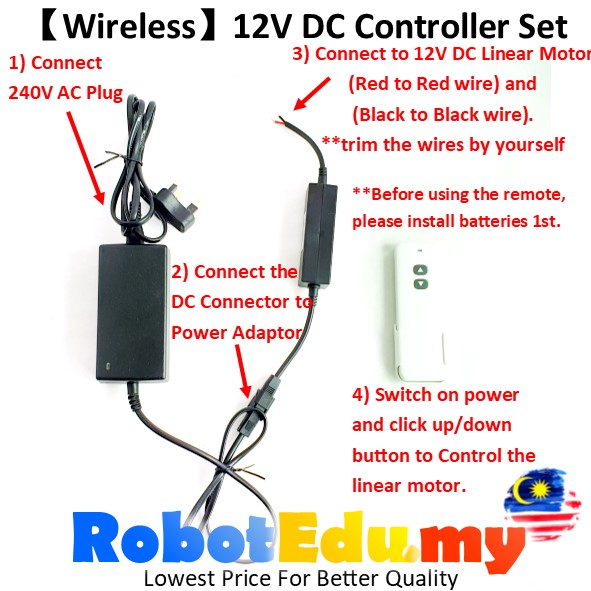

B) Wireless Controller Control Range : 10 Meter +-



How to Use:



Press "up" , linear motor will extend. Press "down" , linear motor will contract.



Press nothing motor will stop.



Connection :

1) Connect AC Power Cord cable to DC Power Adaptor.

2) Connector DC Power Adapter to Wire/wireless controller.

3) Trim the controller output wire, connect the wire to linear motor.

**Red Controller wire to Red Linear Motor wire.

**Black Controller wire to Black Linear Motor wire.

**Connect it with quick connector / solder / wiring tape, and make sure the connection is good without short circuit.

4) After done checking wiring, now you can switch on the AC Power and start pressing the Up / Down button to control the Linear Motor.
