1 PCS - Thermistor Cable

NTC 3950 thermistor cable

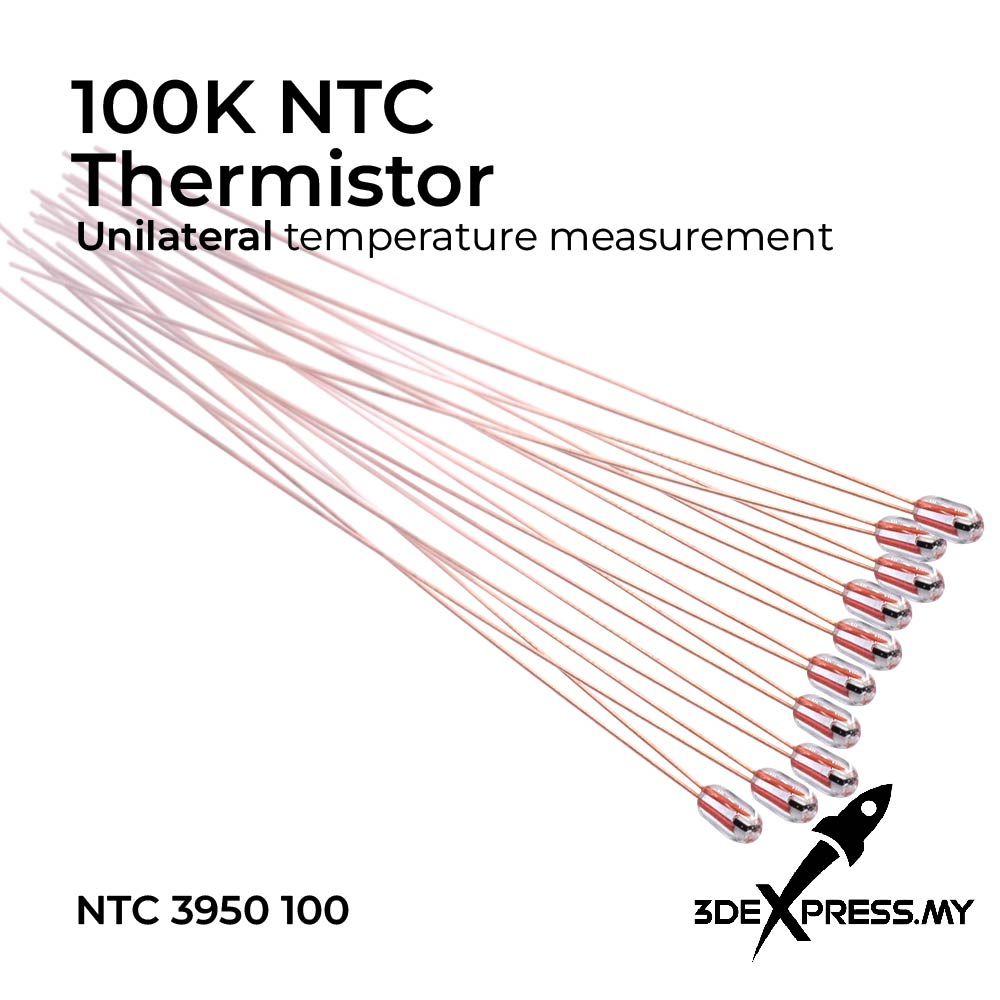

1. Type A: Unilateral temperature measurement
Product description：
Our glass bulbs are better temperature resistant up to 350 degrees. The pins are made of the latest alloy materials, which are more resistant to oxidation and have higher temperature resistance. Naturally, the performance will be more stable when measuring temperature at high temperature. The lead is made of gold plating.
CODE: A0377

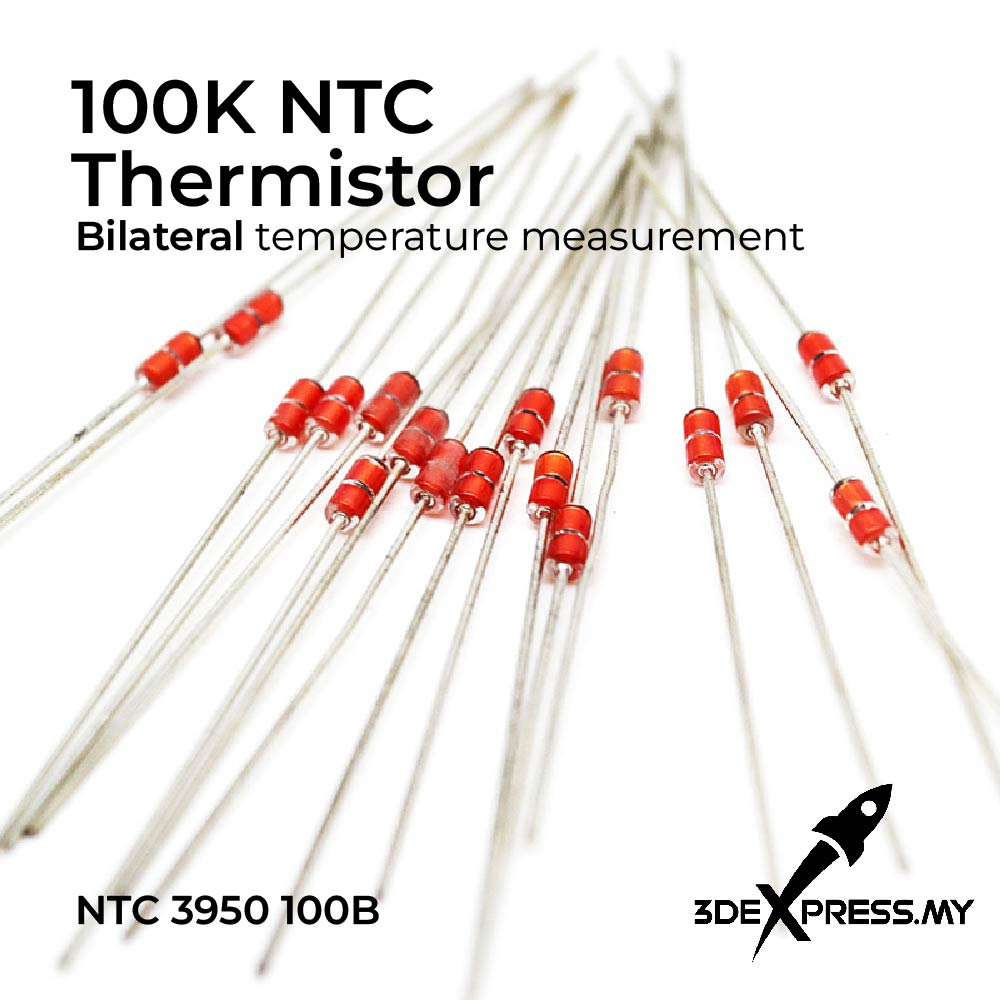

2. Type B: Bilateral temperature measurement
R value: 100 k +/- 5%
B: 3950 k +/- 1%
CODE: A0378

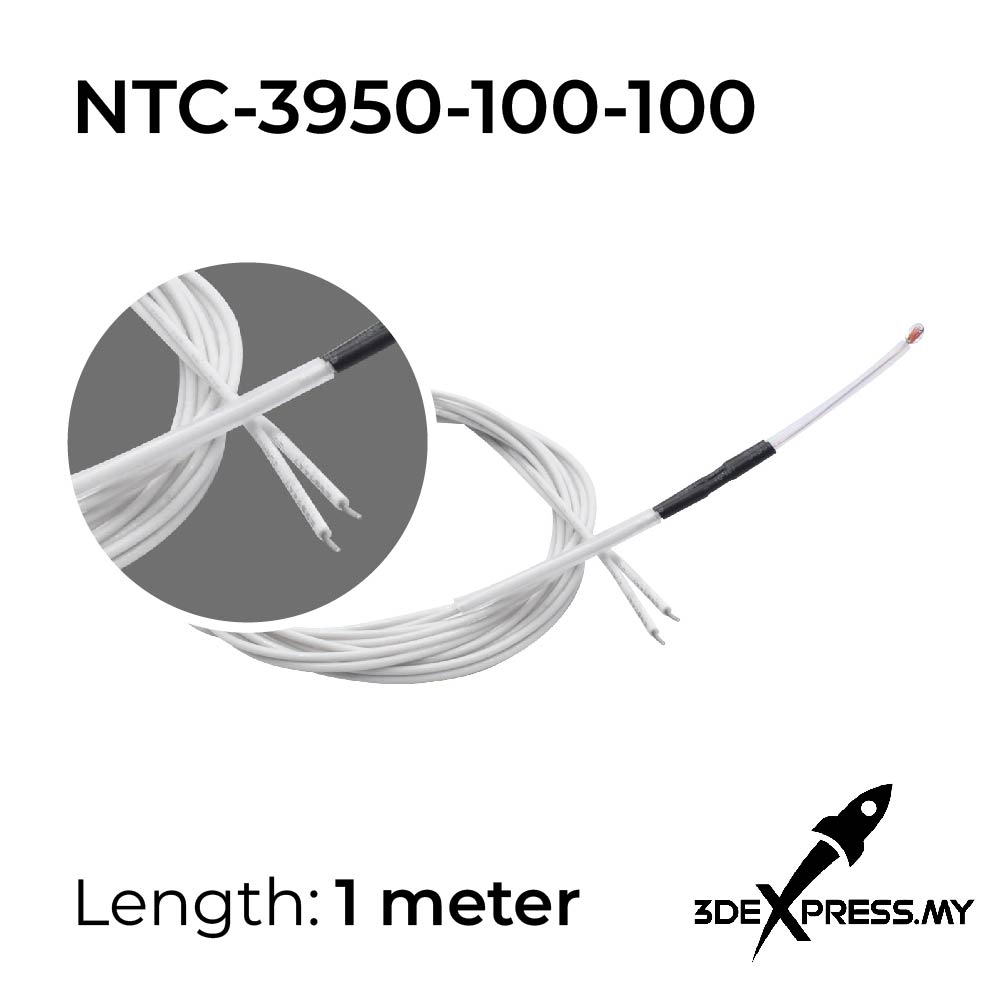

3. Type C: 100K Thermistors cable no terminal
Resistance Accuracy: ±1%，±2%, ±3%
B Accuracy: ±1%
Temperature Range: -40℃～+300℃
Max Rated Power: 45mW
Resistance Temperature Coefficient: -2～-5%/℃
Features:
High sensitivity and fast response
Compact structure and easy installation
Wide temperature range, good stability and high reliability
Can provide different R, B value products, strong interchangeability and high accuracy
CODE: A0379

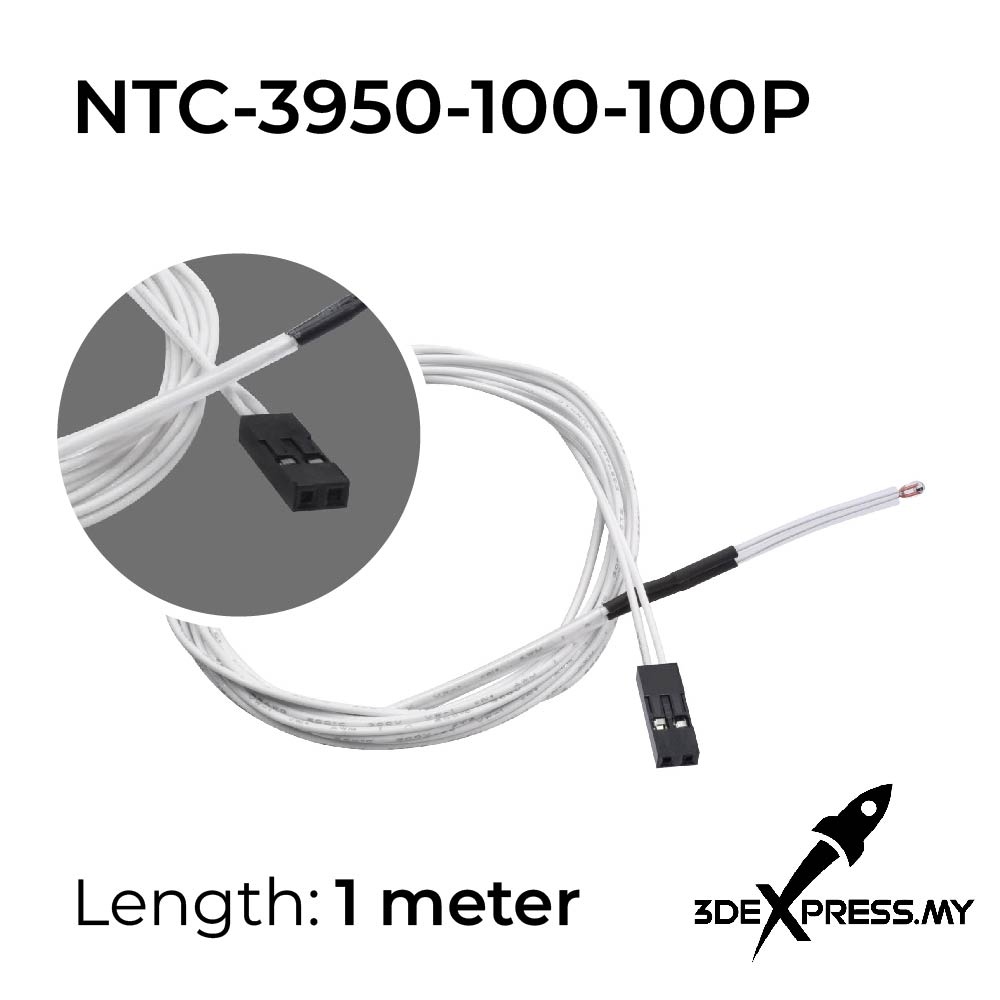

4. Type D: 100K Thermistors cable with terminal
Resistance Accuracy：±1%，±2%,±3%.
B R25/50:（usual）3435K,3600K,3950K,3990K,4100K,4200K and so on.
B Accuracy：±1%.
Temperature Range：-40℃～+300℃.
Max Rated Power：45mW.
Resistance Temperature Coefficient：-2～-5%/℃.
CODE: A0380

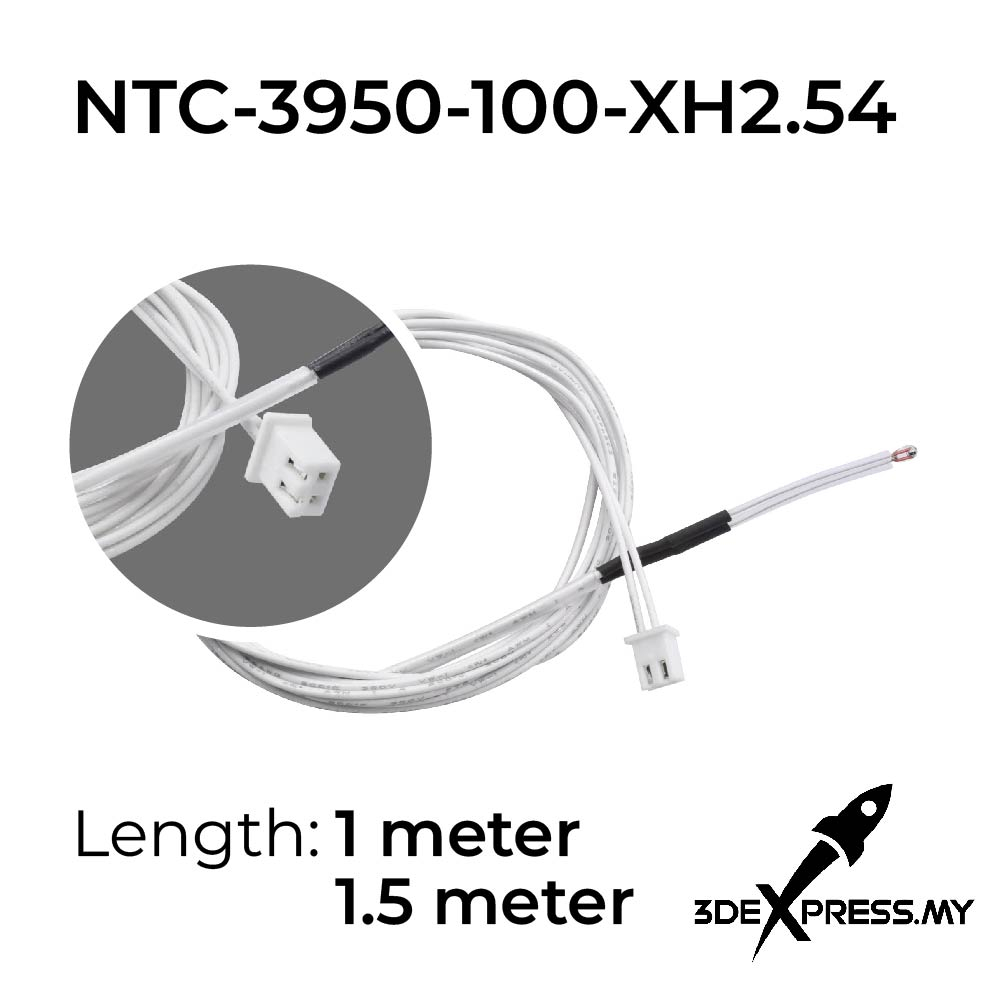

Type E: 100K Thermistors cable with XH 2.54 terminal  Length 1m
CODE: A0381

Type F: 100K Thermistors cable with XH 2.54 terminal  Length 1.5m
CODE: A0382

Product main technical parameters:
Nominal resistance: R25 (25°C): (commonly used) 1.5K, 2K, 5K, 10K, 20K, 30K, 47K, 50K, 100K, 200K, 500K, etc.
B arium resistance accuracy: ±1%, ±2%, ±3%
B value R25/50: (usually) 3435K, 3600K, 3950K, 3990K, 4100K, 4200K, etc.
B accuracy: ±1%
Product features:
High sensitivity and rapid response
Compact and easy to install
Wide temperature range, good stability and high reliability
Can provide different R, B value products, strong interchangeability,

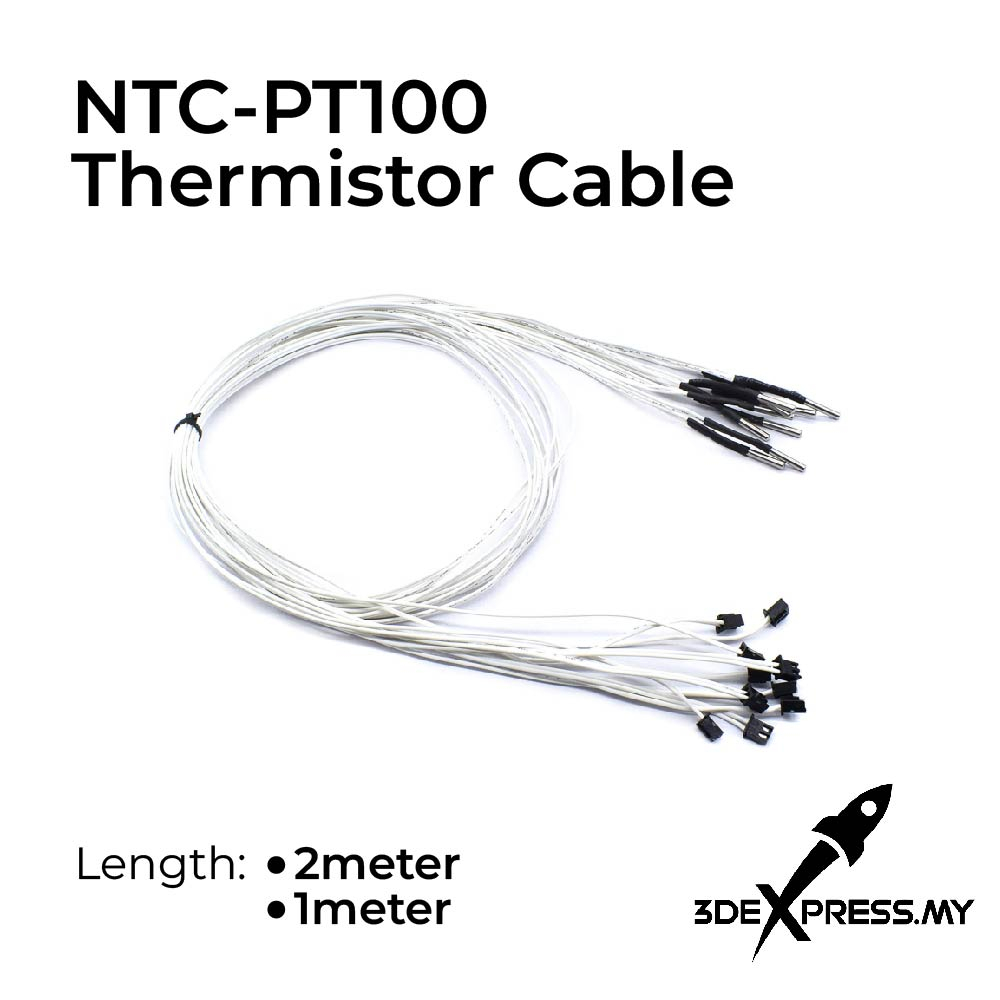

NTC PT100 thermistor cable
Type A: 2m Thermistors cable with black terminal. CODE: A0383
Type B: 1m Thermistors cable with black terminal. CODE: A0384
The improvements compared to the other temperature resistance in the market.
1. Upgrade from the original ordinary temperature probe directly exposed temperature measurement to resistance package temperature measurement. Temperature measurement head cylinder diameter 3mm, length 15mm, can be used with the heating block that support the thermocouple.
 2. The temperature measurement range is increased from -50 ℃~ +250℃ to -50 ℃ ~ +350 ℃. It helps a lot to print high-temperature filament, can replace the original K-type thermocouple temperature. If need to print high-temperature filament, the HT-NTC100K thermistors are highly recommended.
 3. HT-NTC100K thermistor adopts white high-temperature cord, can bear higher temperature. And for customers' convenience, the wires adopts line connection, the customer can tear the wires depends on their application. The high temperature line is double thicker than others in the market, not easy to break off.
