(+1Month Warranty) SG90 180°/360° MG996R MG995 Metal Gear High Torque Micro Servo Motor DXW90/TowerPro[ElectricA]

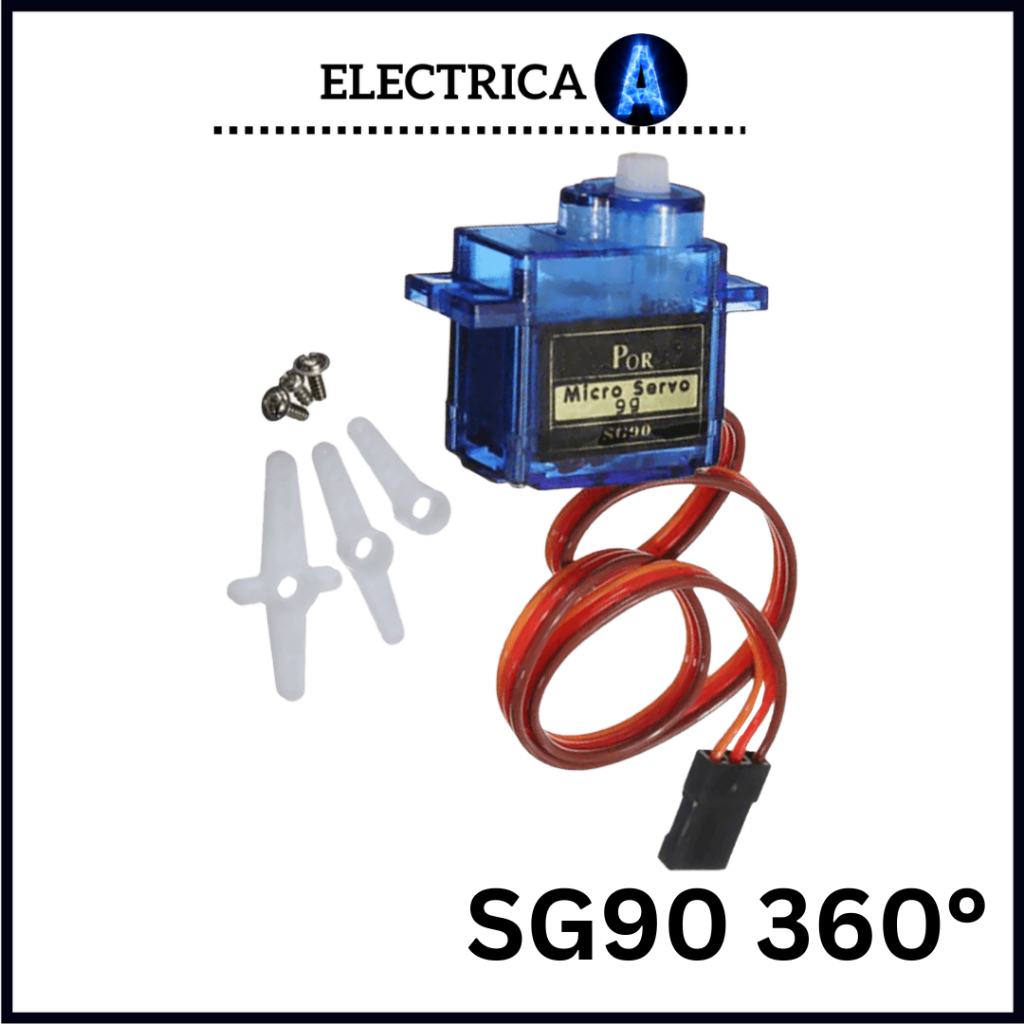

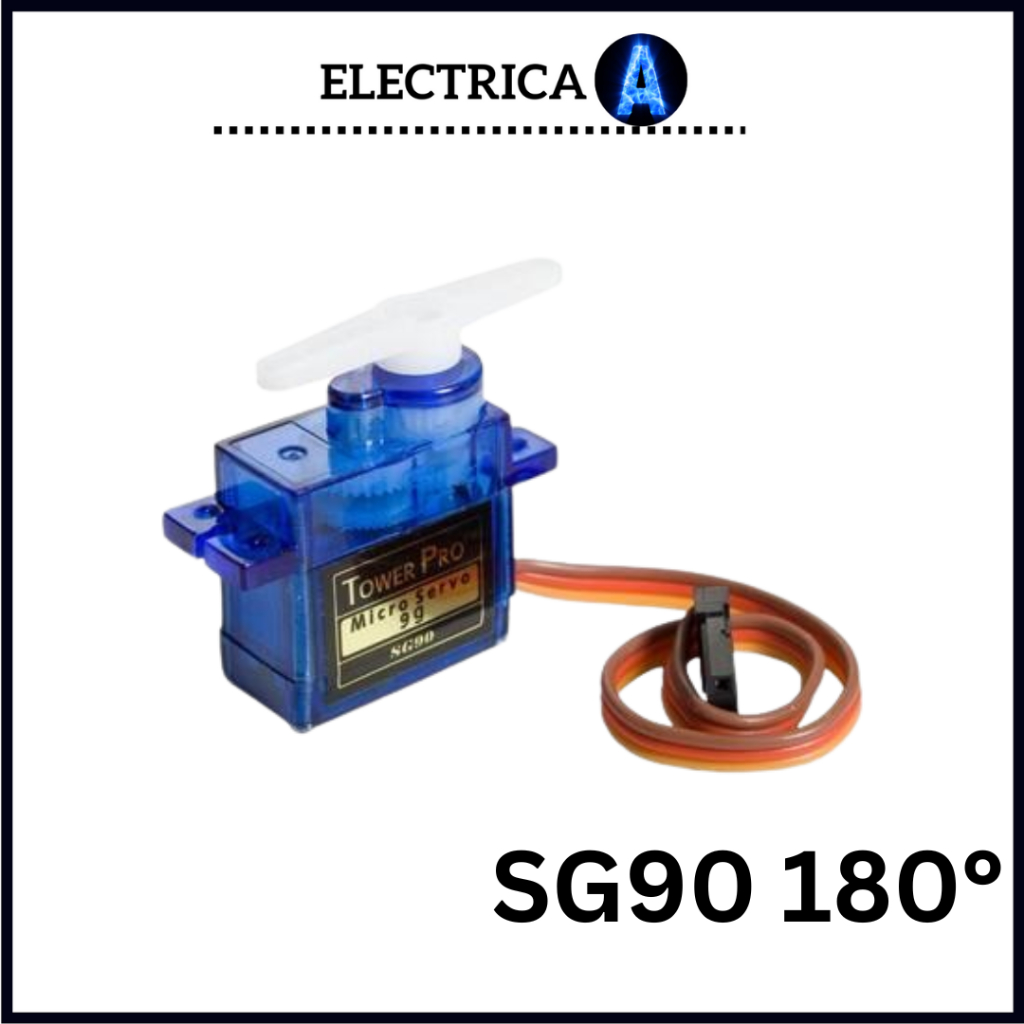

SG90 Spec--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Features:
-The SG90 mini servo is lightweight, high-quality and lightning-fast.
-Compatible with any servo code, hardware or library
-Servo motors comes with three wires: power, ground, and signal.
-Operating Voltage ~5V
-Good for beginners who want to make stuff move without building a motor controller with feedback & gear box, especially since it will fit in small places.

Specifications
• Weight: 9 g
• Dimension: 22.2 x 11.8 x 31 mm approx.
• Stall torque: 1.8 kgf·cm
• Operating speed: 0.1 s/60 degree
• Operating voltage: 4.8 V (~5V)
• Dead band width: 10 µs
• Temperature range: 0 ºC – 55 ºC

power wire :  typically red, and should be connected to the 5V pin.
ground wire :  typically black or brown.
signal pin : typically yellow, orange or white

Download library
https://github.com/arduino-libraries/Servo

Put the folder in arduino > "libraries\".
or
Sketch > include library > Add .Zip library

Package Includes :
1* TowerPro SG90 9g Servo Motor 180 Degree with Cable
1* Set of Horns
1* Set of Screws

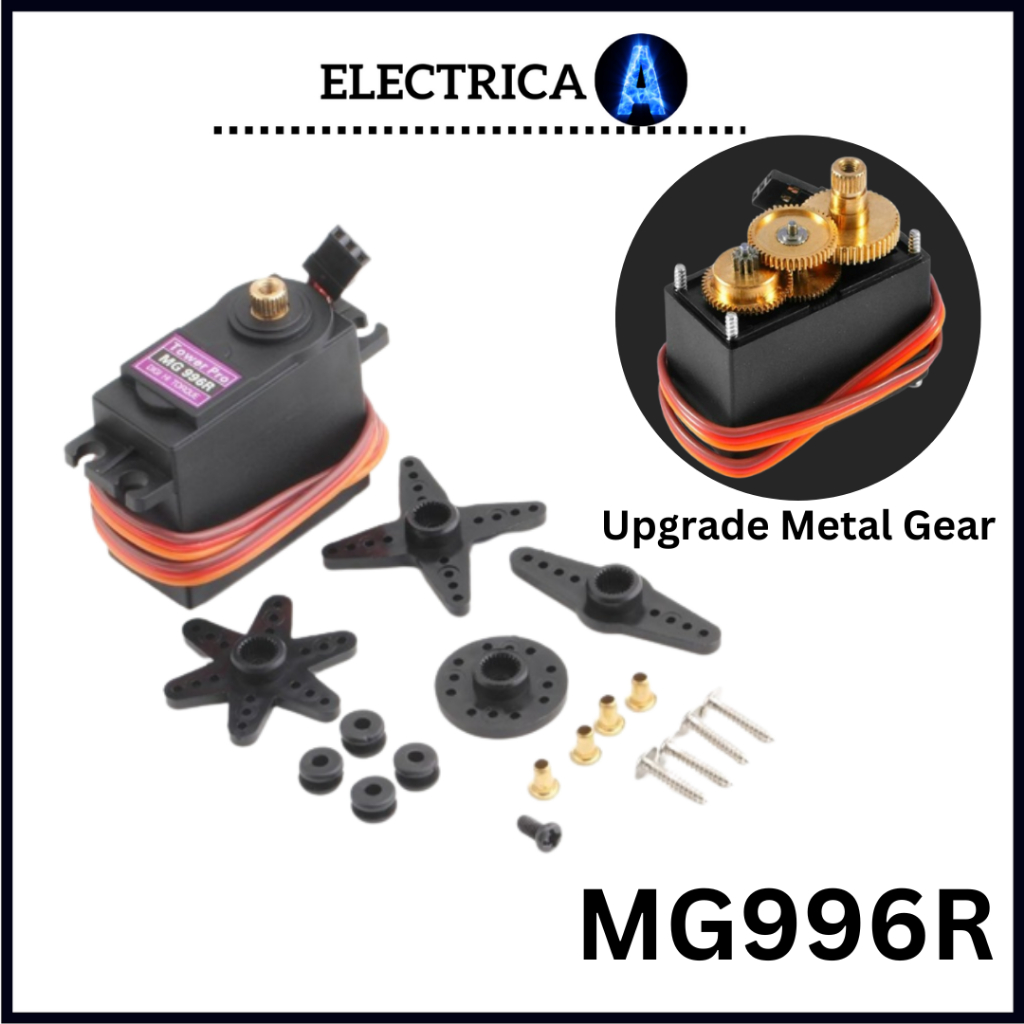

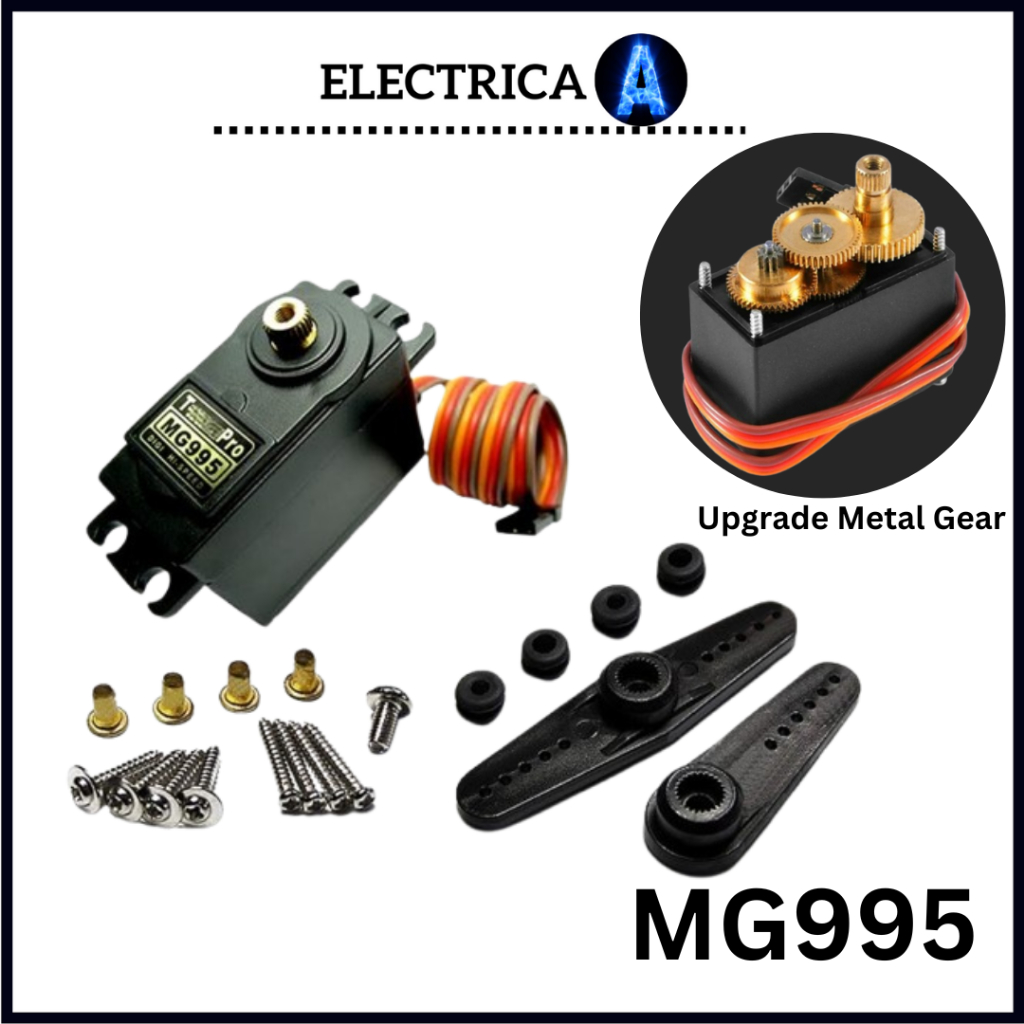

MG996R MG995 Spec--------------------------------------------------------------------------------------------------------------------------------------------------------------------
【Description】
Tower Pro Compatible
-180 Degree Servo Motor Good Quality

【Features】
• Weight: 55 g
• Dimension: 40.7 x 19.7 x 42.9 mm approx.
• Stall torque: 9.4 kgf·cm (4.8 V), 11 kgf·cm (6 V)
• Operating speed: 0.17 s/60º (4.8 V), 0.14 s/60º (6 V)
• Operating voltage: 4.8 V a 6.2 V
• Running Current 500 mA –
• Stall Current 2.5 A (6V)
• Dead band width: 5 µs
• Stable and shock proof double ball bearing design
• Temperature range: 0 ºC –
4.8 V a 7.2 V
– 900 mA (6V)
double ball bearing design 55 ºC

【References】
MG996R : https://www.electronicoscaldas.com/datasheet/MG996R_Tower-Pro.pdf
MG995 : https://www.electronicoscaldas.com/datasheet/MG995_Tower-Pro.pdf

*Cable approximate 29cm to 30cm
For more information or datasheet needed please contact customer service.

【Package Include】📦
1 x Servo Motor
