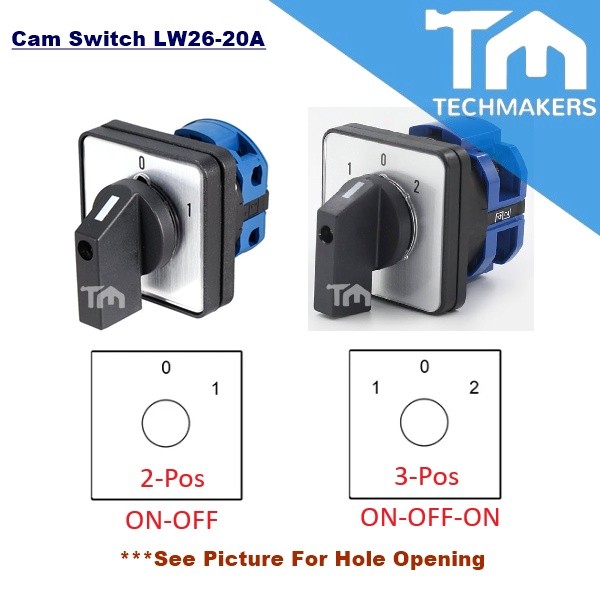

CAM Switch LW26-20 (20A) 2/3 Position Panel Mounting Universal Rotary Switch Cam Changeover Switch

Typical Specifications

Model Series	 : LW26-20 series (20 A rating)
Rated Current : 20 A (Thermal current)
Rated Insulation Voltage (Ui) : ~690 V
Working Voltage : Up to 440 V AC (varies by position)
Positions : 2 or 3 selectable positions (e.g., 1-0-2 or 0-1-2-3)
Poles/Terminals : Typically 2 poles / 8 terminals; can be configured differently
Mounting Style : Panel mount with panel cut-out screw fixings
Contact Material : Usually silver alloy
Body Material : Plastic / thermoset housing
Application : Motor control, circuit selection, control circuits, machinery, etc.

Typical Uses
✅ Control Panels – Manual selection of circuits or modes.
✅ Motor Control – Forward/Reverse or Off.
✅ Machine Switchgear – Select functional states manually.
✅ Power Distribution – Simple transfer between sources.
