Cytron Maker Nano & RP2040 Suitable for FYP Mini Project Built-in LEDs Buttons Buzzer Arduino High Quality READY STOCK

📣📣Love Maker UNO? But it's too big to fit into your project?

⭐️⭐️Worry not! Introducing Maker Nano, an Arduino board specially crafted for building projects while maintaining all the useful features of Maker UNO.⭐️⭐️

✅✅Simplifying Learning and Troubleshooting✅✅
Wiring up your own circuit is always the most tedious part of learning electronics. It's very prone to error and sometimes, not reversible. With the help of 12 x LEDs, 1 x programmable push button and 1 x piezo buzzer, you can start coding and have some fun experimenting with Maker Nano right out-of-the-box without the hassle of wiring up any circuit. As you learn and start building projects, the LEDs for each digital I/O pin will also come handy for circuit troubleshooting.

✅✅Compatible with Original Arduino Nano✅✅
Just slightly bigger than the original Arduino Nano (1mm longer and 3mm wider) and maintaining the same pin arrangement, Maker Nano is compatible with most, if not all, of the daughter boards for Arduino Nano in the market. Not to forget it's also breadboard friendly. The smaller form factor compared with Arduino UNO makes this a better choice not only for learning purposes but also for building projects and having fun with experiments, especially when you need to fit the board into the tiniest space possible. Unlike its bigger brother Maker UNO, Maker Nano comes with a 5V regulator which means you can power up your circuit from battery or DC adapter, besides the USB port.

📦 Packing List:
1 x Maker Nano


⭐️ MAKER NANO RP2040 ⭐️

✅ Looking for a small but powerful MCU for your project? Arduino Nano can't satisfy you anymore? We have the Maker Nano RP2040 for you. Same Arduino Nano form factor, but powered by a much more powerful RP2040 MCU from Raspberry Pi. This also means that it's compatible with most (see exception below) of the daughter boards for Arduino Nano in the market. Not to forget it's also breadboard friendly to allow building your own circuit.
❗️ The IO voltage is only 3.3V and it's not 5V compatible.
❗️ There are only four ADC inputs (A0 - A3) on the Maker Nano RP2040 instead of eight on the Arduino Nano.

✅ The Raspberry Pi RP2040 MCU can be programmed with C/C++ (Natively or with Arduino IDE support), micropython or circuitpython. With massive libraries support and examples especially in Arduino IDE and circuitpython, you will be ready to build your application in no time, be it for learning purpose or for building a useful project.

⭐️ FEATURES
📌 Arduino Nano form factor
📌 Powered by Rapberry Pi RP2040
🔹Dual-core Arm Cortex-M0+ processor
🔹264KB internal RAM
🔹2MB of Flash memory
🔹the exact same specifications with Raspberry Pi Pico
📌 14x Status indicator LEDs for GPIOs
📌 1x Piezo buzzer with mute switch
📌 1x Push button
📌 2x RGB LEDs (WS2812 Neopixel)
📌 2x Maker Ports, compatible with Qwiic, STEMMA QT, Grove (via conversion cable)
📌 Support Arduino IDE, CircuitPython and MicroPython

📦 Packing List:

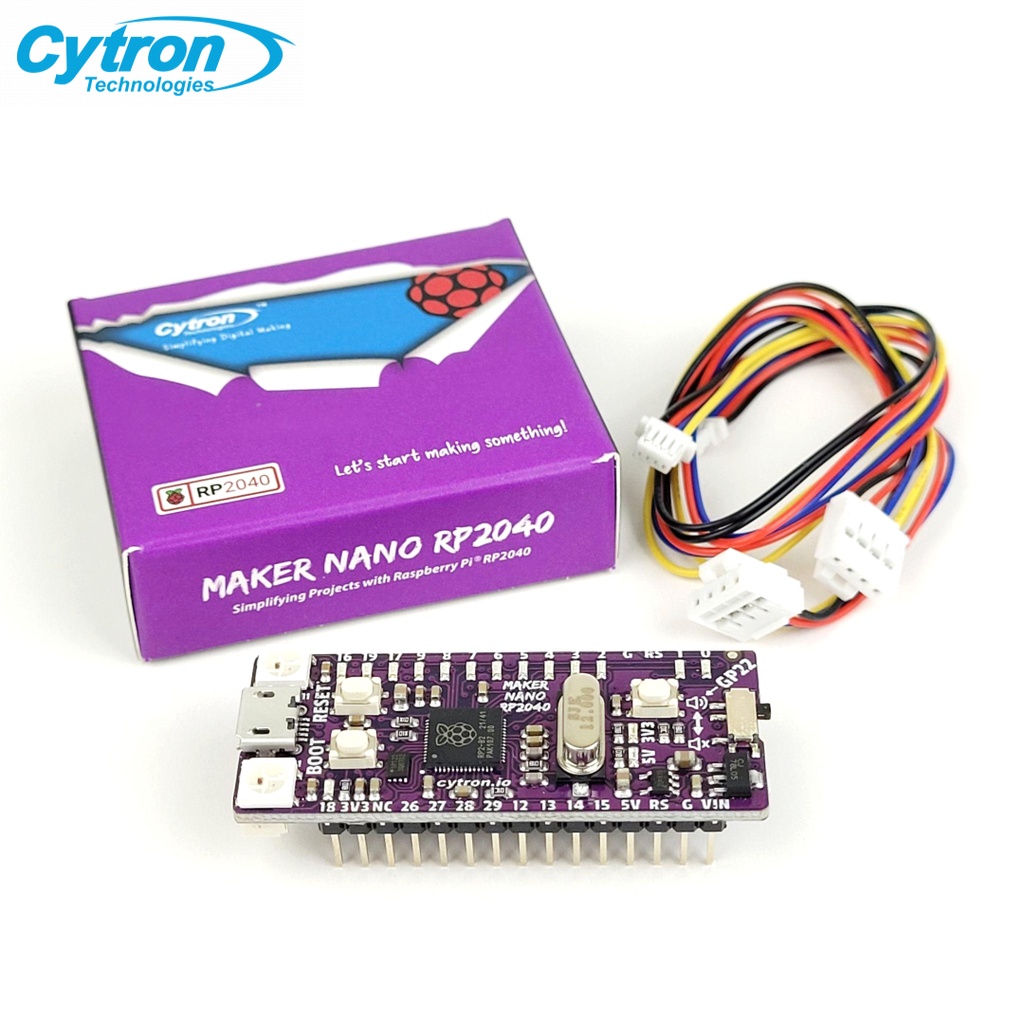

MAKER NANO RP2040
✅ 1x Maker Nano RP2040
✅ 2x Grove to JST-SH (Qwiic / STEMMA QT) Cable

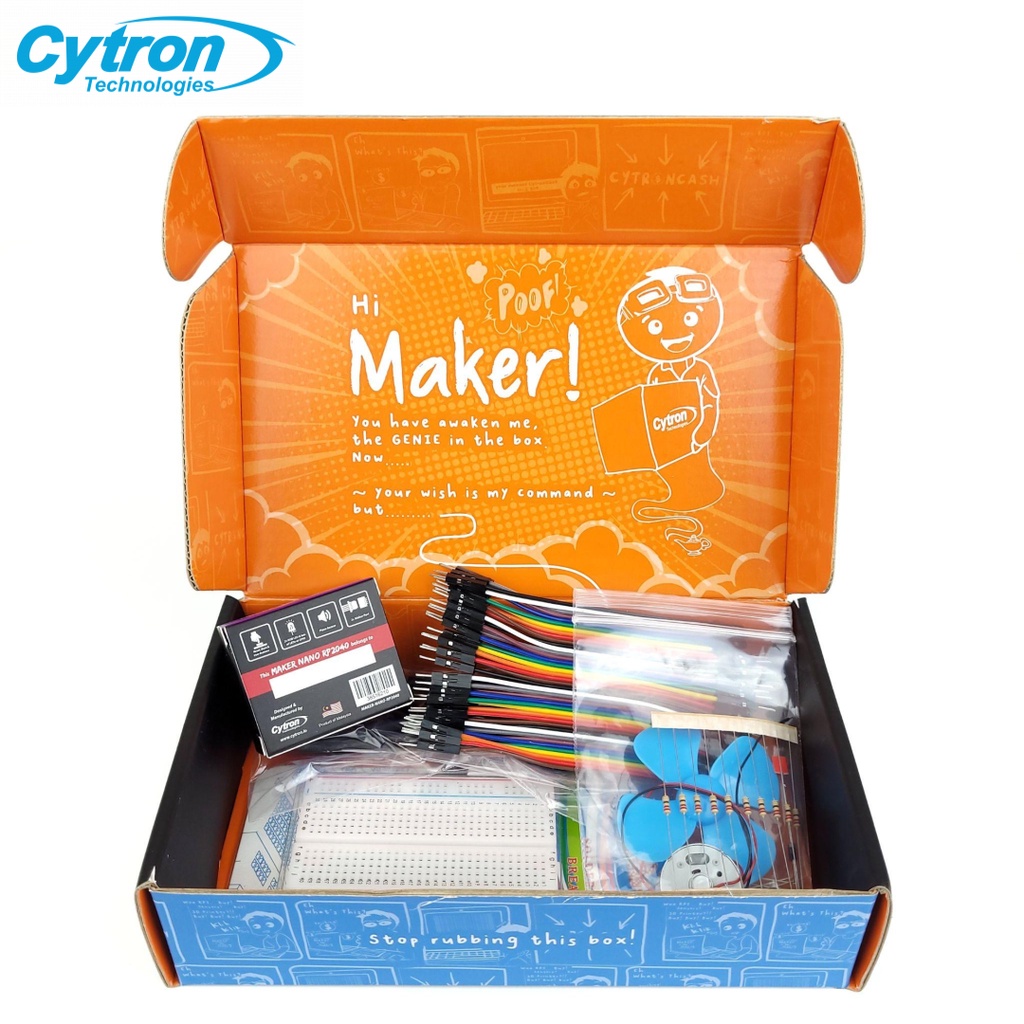

RP2040 BASIC KIT
*Please visit to our website for the manual guide
✅ 1x Maker Nano RP2040, including 2 Grove to JST-SH (Qwiic / STEMMA QT) Cables
✅ 1x Breadboard 8.5x5.5cm (400 Holes)
✅ 1x 40-Way 10cm Dupont Jumper Wire
✅ 1x Finger Adjust Preset 10K
✅ 2x LED 5mm Green
✅ 2x LED 5mm Yellow
✅ 2x LED 5mm Red
✅ 1x DIY 4 Blades 56mm Motor Propeller (Blue)
✅ 1x DC2-6V Miniature Motor with 20cm Wire
✅ 1 x Transistor 2N2222
✅ 10 x Resistor 0.25W 5% (220R)
✅ 1x LDR(Small)
✅ 1x USB Micro B Cable
✅ 1x Diodes 1N4007

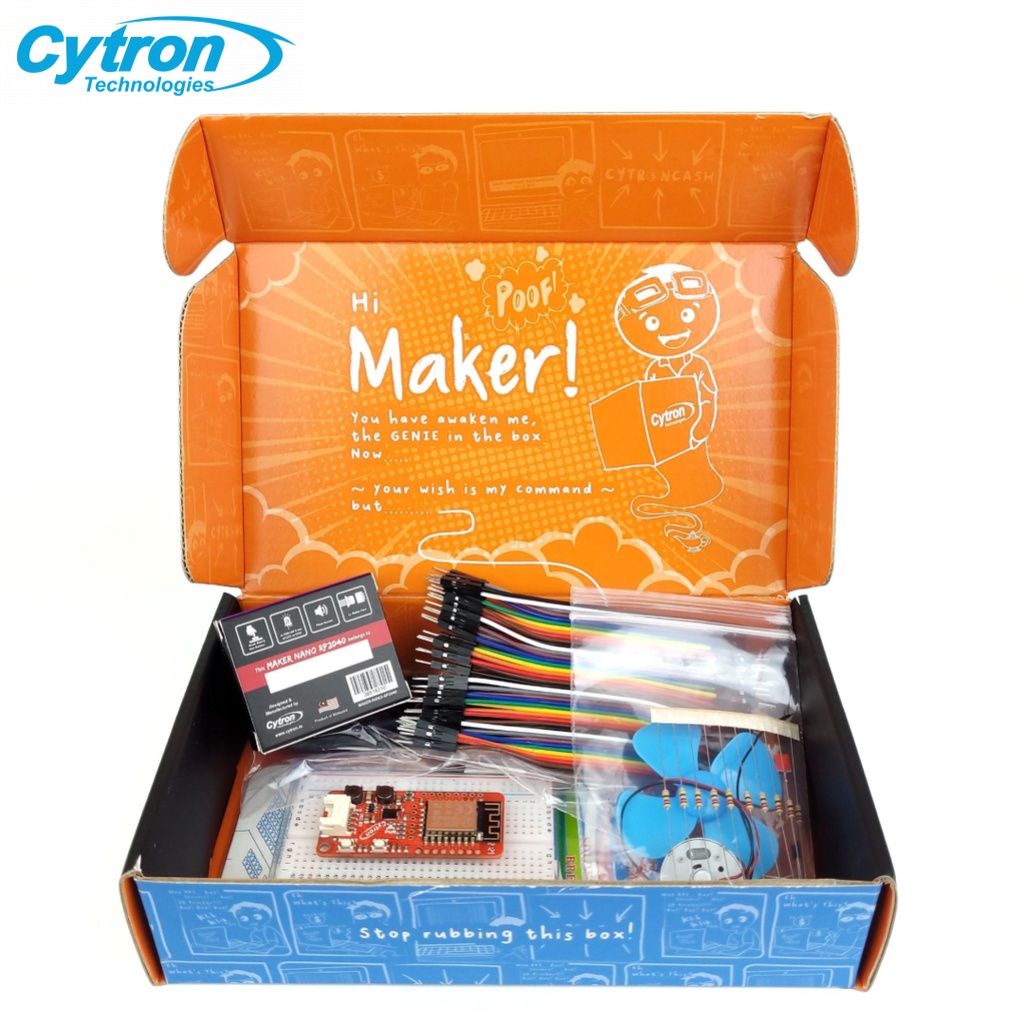

RP2040 BASIC IOT KIT
*Please visit to our website for the manual guide
✅ All in RP2040 BASIC KIT
✅ Grove WiFi 8266 - IoT for micro:bit and beyond
