(+1Month Warranty) A4988 / DRV8825 3d Printer Accessories Stepper Motor Driver A 4988 16 Fine Drv 8825 32 [ElectricA]

About A4988
Introduction:
This product is a breakout board for Allegro's A4988 DMOS Microstepping Driver with Translator and Overcurrent Protection; please read the A4988 datasheet carefully before using this product. This stepper motor driver lets you to operate bipolar stepper motors in full-, half-, quarter-, eighth-, and sixteenth-step modes, with an output drive capacity of up to 35 V and 2 A.

The translator is the key to the easy implementation of the A4988. Simply inputting one pulse on the STEP input drives the motor one microstep. There are no phase sequence tables, high frequency control lines, or complex interfaces to program.The A4988 interface is an ideal fit for applications where a complex microprocessor is unavailable or is overburdened.

Feature:
Simple step and direction control interface;
Five different step resolutions: full-step, half-step, quarter-step, eighth-step, and sixteenth-step;
Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor's rated;
Voltage to achieve higher step rates;
3.3 and 5 V compatible logic supply
Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay);
Over-temperature thermal shutdown, under-voltage lockout, and crossover-current protection;
Short-to-ground and shorted-load protection.


About Drv8825
Introduction:

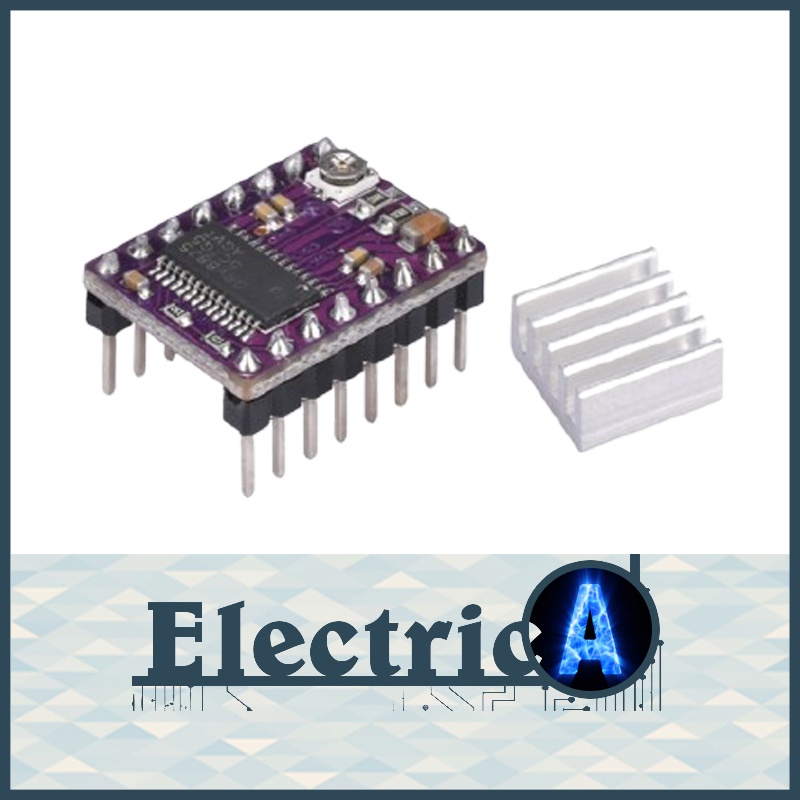

The DRV8825 stepper motor driver carrier is a breakout board for TI's DRV8825 microstepping bipolar stepper motor driver.
The module has a pinout and interface that are nearly identical to those of our A4988 stepper motor driver carriers, so it can be used as a higher-performance drop-in replacement for those boards in many applications.
The DRV8825 features adjustable current limiting, overcurrent and overtemperature protection, and six microstep resolutions (down to 1/32-step). It operates from 8.2 – 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling).

Features:
Simple step and direction control interface
Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
Can interface directly with 3.3 V and 5 V systems
Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout
Short-to-ground and shorted-load protection
4-layer, 2 oz copper PCB for improved heat dissipation
Exposed solderable ground pad below the driver IC on the bottom of the PCB
Module size, pinout, and interface match those of our A4988 stepper motor driver carriers in most respects (see the bottom of this page for more information)
Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor's rated voltage to achieve higher step rates
Intelligent chopping control
